Alumi-Tec: Manifold with 7 Ports 90°

Manifold with 7 Ports 90&degree;

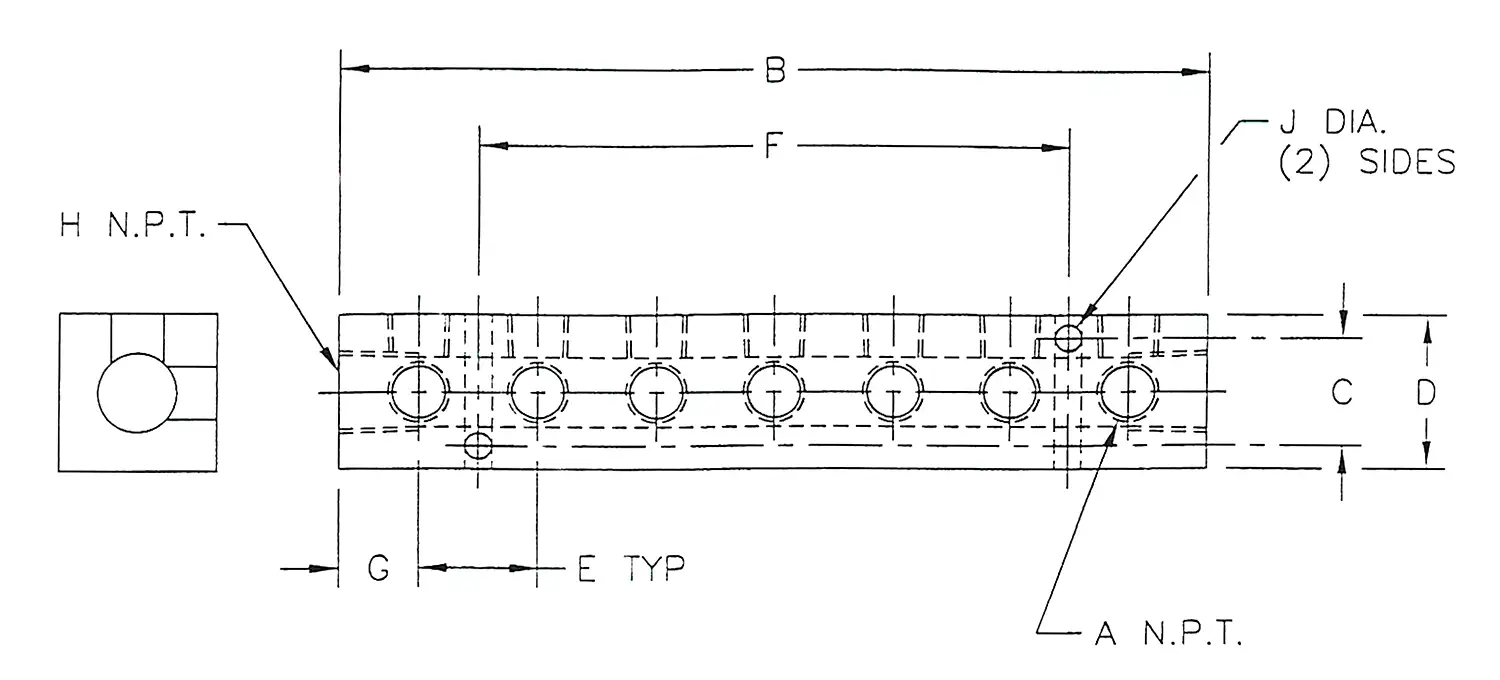

P/N A B C D E F G H J
90-AM-1-7_111 1/8 5.5 0.7 1 0.75 3.75 0.5 1/4 0.17
90-AM-2-7_111 1/8 6.75 0.88 1.25 0.88 4.38 0.75 3/8 0.2
90-AM-3-7_111 1/4 6.75 0.88 1.25 0.88 4.38 0.75 3/8 0.2
90-AM-4-7_111 1/4 7.75 1.12 1.5 1 4.38 0.88 1/2 0.2
90-AM-5-7_111 3/8 7.75 1.12 1.5 1 5 0.88 1/2 0.2
90-AM-6-7_111 1/8 10.75 0.7 1 1.5 5 0.88 1/4 0.17
90-AM-7-7_111 1/8 10.75 0.88 1.25 1.5 7.5 0.88 3/8 0.2
90-AM-8-7_111 1/4 10.75 0.88 1.25 1.5 7.5 0.88 3/8 0.2
90-AM-9-7_111 1/4 10.75 1.12 1.5 1.5 7.5 0.88 1/2 0.2
90-AM-10-7_111 3/8 10.75 1.12 1.5 1.5 7.5 0.88 1/2 0.2
90-AM-11-7_111* 1/4 16.5 1.62 2.25 2.25 11.25 1.5 1 0.265
90-AM-12-7_111* 3/8 16.5 1.62 2.25 2.25 11.25 1.5 1 0.265
90-AM-13-7_111* 1/2 16.5 1.62 2.25 2.25 11.25 1.5 1 0.265
90-AM-14-7_111* 3/4 21 1.62 2.25 3 15 1.5 1 0.265
90-AM-15-7_111* 1/4 16.5 2.38 3 2.25 11.25 1.5 1-1/4 0.33
90-AM-16-7_111* 3/8 16.5 2.38 3 2.25 11.25 1.5 1-1/4 0.33
90-AM-17-7_111* 1/2 16.5 2.38 3 2.25 11.25 1.5 1-1/4 0.33
90-AM-18-7_111* 3/4 21 2.38 3 3 15 1.5 1-1/4 0.33
*Non-Anodized
