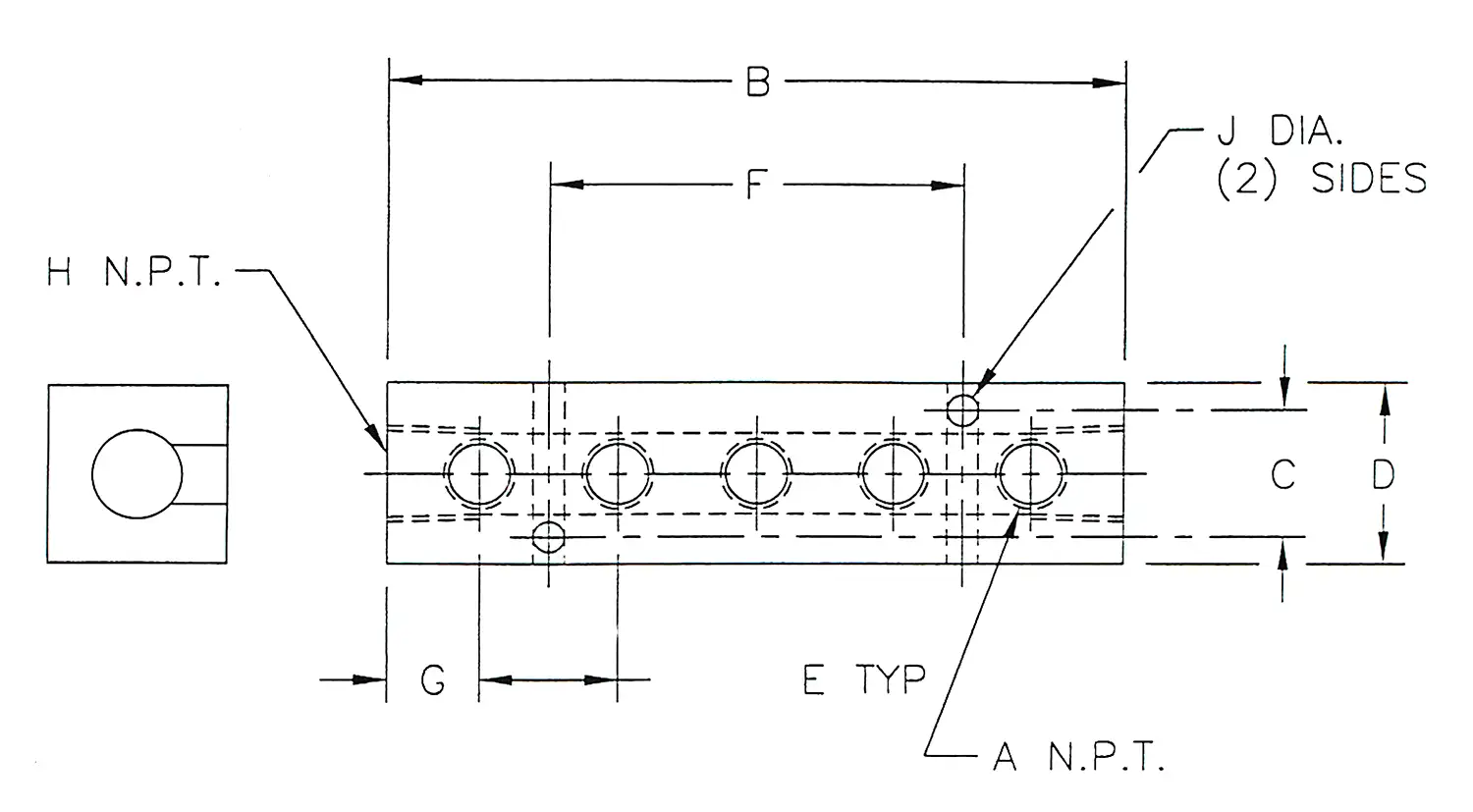

Alumi-Tec: Manifold with 5 Ports
| P/N | A | B | C | D | E | F | G | H | J |
| AM-1-5_111 | 1/8 | 4 | 0.7 | 1 | 0.75 | 2.25 | 0.5 | 1/4 | 0.17 |
| AM-2-5_111 | 1/8 | 5 | 0.88 | 1.25 | 0.88 | 2.62 | 0.75 | 3/8 | 0.2 |
| AM-3-5_111 | 1/4 | 5 | 0.88 | 1.25 | 0.88 | 2.62 | 0.75 | 3/8 | 0.2 |
| AM-4-5_111 | 1/4 | 5.75 | 1.12 | 1.5 | 1 | 3 | 0.88 | 1/2 | 0.2 |
| AM-5-5_111 | 3/8 | 5.75 | 1.12 | 1.5 | 1 | 3 | 0.88 | 1/2 | 0.2 |
| AM-6-5_111 | 1/8 | 7.5 | 0.7 | 1 | 1.5 | 4.5 | 0.88 | 1/4 | 0.17 |
| AM-7-5_111 | 1/8 | 7.5 | 0.88 | 1.25 | 1.5 | 4.5 | 0.88 | 3/8 | 0.2 |
| AM-8-5_111 | 1/4 | 7.75 | 0.88 | 1.25 | 1.5 | 4.5 | 0.88 | 3/8 | 0.2 |
| AM-9-5_111 | 1/4 | 7.75 | 1.12 | 1.5 | 1.5 | 4.5 | 0.88 | 1/2 | 0.2 |
| AM-10-5_111 | 3/8 | 7.75 | 1.12 | 1.5 | 1.5 | 4.5 | 0.88 | 1/2 | 0.2 |
| AM-11-5_111* | 1/4 | 12 | 1.62 | 2.25 | 2.25 | 6.75 | 1.5 | 1 | 0.265 |
| AM-12-5_111* | 3/8 | 12 | 1.62 | 2.25 | 2.25 | 6.75 | 1.5 | 1 | 0.265 |
| AM-13-5_111* | 1/2 | 12 | 1.62 | 2.25 | 2.25 | 6.75 | 1.5 | 1 | 0.265 |
| AM-14-5_111* | 3/4 | 15 | 1.62 | 2.25 | 3 | 9 | 1.5 | 1 | 0.265 |
| AM-15-5_111* | 1/4 | 12 | 2.38 | 3 | 2.25 | 6.75 | 1.5 | 1-1/4 | 0.33 |
| AM-16-5_111* | 3/8 | 12 | 2.38 | 3 | 2.25 | 6.75 | 1.5 | 1-1/4 | 0.33 |
| AM-17-5_111* | 1/2 | 12 | 2.38 | 3 | 2.25 | 6.75 | 1.5 | 1-1/4 | 0.33 |
| AM-18-5_111* | 3/4 | 15 | 2.38 | 3 | 3 | 9 | 1.5 | 1-1/4 | 0.33 |
