Alumi-Tec: Manifold with 3 Ports 90°

Manifold with 3 Ports 90&degree;

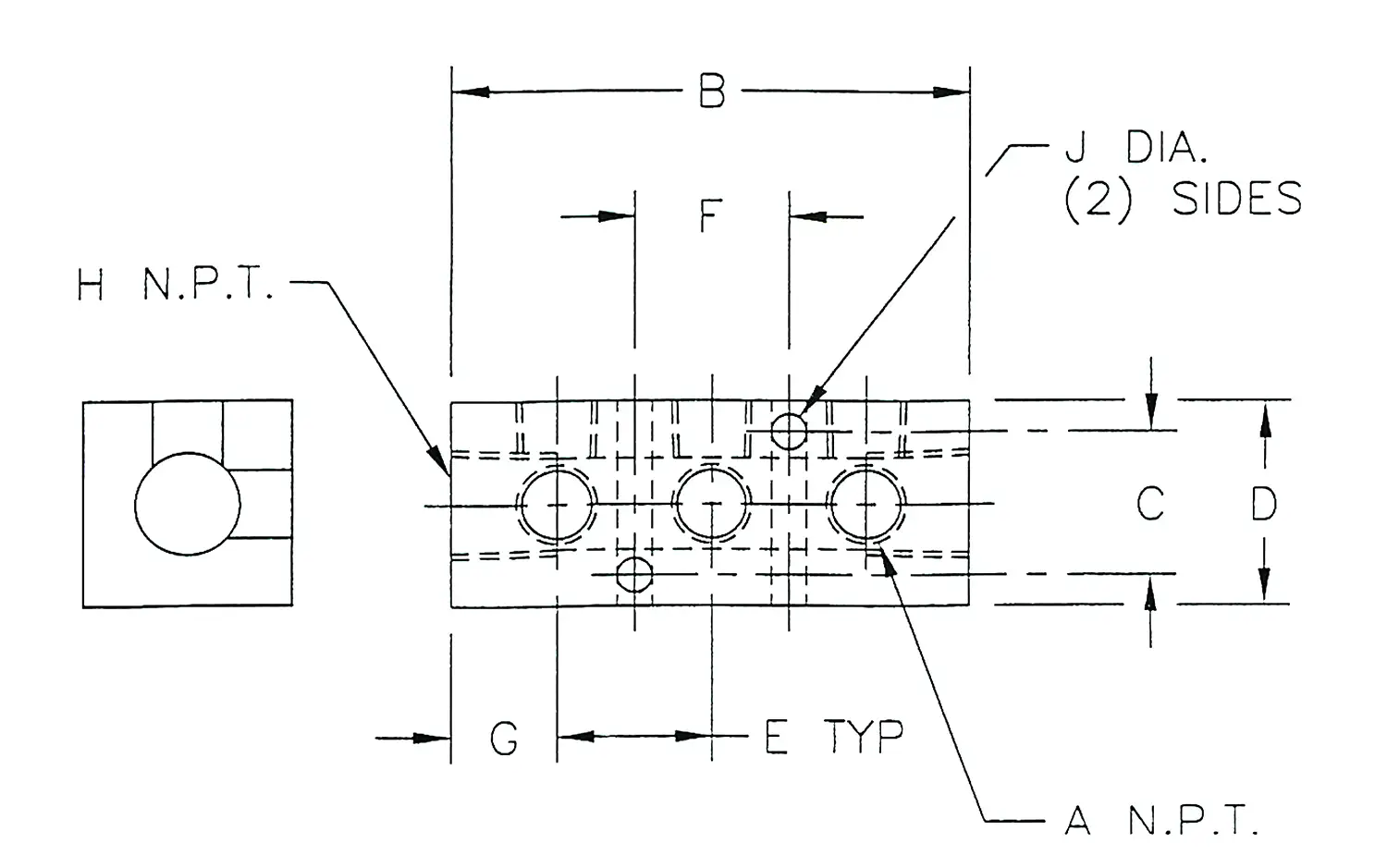

P/N A B C D E F G H J
90-AM-1-3_111 1/8 2.5 0.7 1 0.75 0.75 0.5 1/4 0.17
90-AM-2-3_111 1/8 3.25 0.88 1.25 0.88 0.88 0.75 3/8 0.2
90-AM-3-3_111 1/4 3.25 0.88 1.25 0.88 0.88 0.75 3/8 0.2
90-AM-4-3_111 1/4 3.75 1.12 1.5 1 1 0.88 1/2 0.2
90-AM-5-3_111 3/8 3.75 1.12 1.5 1 1 0.88 1/2 0.2
90-AM-6-3_111 1/8 4.75 0.7 1 1.5 1.5 0.88 1/4 0.17
90-AM-7-3_111 1/8 4.75 0.88 1.25 1.5 1.5 0.88 3/8 0.2
90-AM-8-3_111 1/4 4.75 0.88 1.25 1.5 1.5 0.88 3/8 0.2
90-AM-9-3_111 1/4 4.75 1.12 1.5 1.5 1.5 0.88 1/2 0.2
90-AM-10-3_111 3/8 4.75 1.12 1.5 1.5 1.5 0.88 1/2 0.2
90-AM-11-3_111* 1/4 7.5 1.62 2.25 2.25 2.25 1.5 1 0.265
90-AM-12-3_111* 3/8 7.5 1.62 2.25 2.25 2.25 1.5 1 0.265
90-AM-13-3_111* 1/2 7.5 1.62 2.25 2.25 2.25 1.5 1 0.265
90-AM-14-3_111* 3/4 9 1.62 2.25 3 3 1.5 1 0.265
90-AM-15-3_111* 1/4 7.5 2.38 3 2.25 2.25 1.5 1-1/4 0.33
90-AM-16-3_111* 3/8 7.5 2.38 3 2.25 2.25 1.5 1-1/4 0.33
90-AM-17-3_111* 1/2 7.5 2.38 3 2.25 2.25 1.5 1-1/4 0.33
90-AM-18-3_111* 3/4 9 2.38 3 3 3 1.5 1-1/4 0.33
*Non-Anodized
